HELICS Fundamentals

Overview

This lesson introduces the core concepts of HELICS (Hierarchical Engine for Large-scale Infrastructure Co-Simulation), building directly on the installation completed in the previous lesson. We will progress from fundamental concepts to hands-on implementation of simple co-simulation federates.

Learning Objectives

By the end of this lesson, students will be able to:

1. Explain the purpose and architecture of HELICS co-simulation

2. Understand the roles of brokers, federates, and the publication/subscription model

3. Identify the stages of co-simulation execution

4. Create and run simple two-federate co-simulations in Python

5. Configure federate communication using both API calls and JSON configuration

6. Debug basic co-simulation issues

Prerequisites

• Completed Lesson 1 (Co-Simulation Environment Setup)

• Active cosim conda environment with HELICS installed

• Basic Python programming knowledge

• Understanding of simulation concepts

Environment Verification

Before we begin, let’s verify that our co-simulation environment is properly configured and HELICS is available.

# Verify HELICS installation and basic functionality
import sys
import os
import time
import numpy as np
import matplotlib.pyplot as plt

%matplotlib inline

try:
    import helics as h
    print(f"✓ HELICS version: {h.helicsGetVersion()}")
    print(f"✓ Python version: {sys.version.split()[0]}")
    print(f"✓ Environment ready for co-simulation")
except ImportError as e:
    print(f"✗ HELICS import failed: {e}")
    print("Please ensure the 'cosim' conda environment is activated")
    print("Run: mamba activate cosim")
except OSError as e:
    if "undefined symbol" in str(e):
        print(f"✗ HELICS import failed with C++ library error: {e}")
        print("\nThis is a known issue with Jupyter environments.")
        print("Please see the troubleshooting section in setup.md:")
        print("  Section: 'HELICS Import Error in Jupyter'")
        print("\nQuick fix: Use the custom kernel 'CoSim (HELICS Fixed)' if available")
    else:
        raise

✓ HELICS version: 3.6.1 (2025-02-24)
✓ Python version: 3.9.23
✓ Environment ready for co-simulation

Introduction: Why Co-Simulation?

The Challenge of Complex Systems

Modern engineering systems are increasingly complex and interconnected. Consider these examples:

• Smart Grids: Electrical transmission systems interact with distribution networks, which connect to renewable energy sources, electric vehicles, and smart appliances

• Smart Cities: Transportation systems coordinate with energy networks, communication infrastructure, and building management systems

• Industrial Systems: Manufacturing processes integrate with supply chains, energy systems, and control networks

Limitations of Traditional Simulation

Traditional simulation approaches face several limitations:

1. Domain Expertise: Different parts of complex systems require specialized modeling tools and domain knowledge

2. Computational Complexity: Modeling everything in one tool becomes computationally intractable

3. Tool Optimization: Specialized tools are optimized for specific domains and may not handle other domains well

4. Development Cost: Creating monolithic simulation tools for complex systems is expensive and time-consuming

Co-Simulation Solution

Co-simulation addresses these challenges by:

• Connecting Specialized Tools: Each tool focuses on what it does best

• Coordinated Execution: Tools run simultaneously and exchange information

• Time Synchronization: Ensures all tools advance through time in a coordinated manner

• Scalable Architecture: Can accommodate from two to thousands of simulation tools

Core HELICS Concepts

The HELICS Architecture

HELICS provides a standardized framework for co-simulation with four key components:

1. Broker

• Definition: Central coordination hub that manages communication between federates

• Functionality: Message routing, time synchronization, federation lifecycle management

• Analogy: Like a postal service that coordinates mail delivery between different addresses

• Implementation: Usually one broker per co-simulation, but can be hierarchical for large systems

2. Federate

• Definition: An individual simulation or computational entity within the co-simulation

• Types:

  • Value federates (continuous/physics-based simulations)

  • Message federates (discrete event simulations)

  • Combination federates (both value and message capabilities)

• Characteristics: Independent execution, specific time management, defined interfaces

3. Publication/Subscription Model

• Concept: Decoupled communication where data producers and consumers don’t directly interact

• Publications: Data outputs from a federate that other federates can access

• Subscriptions: Data inputs to a federate from other federates’ publications

• Benefits: Scalability, modularity, flexibility in system design

4. Time Management

• Purpose: Ensures all federates advance through simulation time in a coordinated manner

• Implementation: Federates request permission to advance to specific times

• Coordination: Broker grants time advancement only when it’s safe for all federates

Co-Simulation Execution Stages

Every HELICS co-simulation progresses through four distinct stages:

1. Creation: Register federates, define publications/subscriptions, establish communication interfaces

2. Initialization: Prepare for simulation, exchange initial data, verify connections

3. Execution: Main simulation loop with coordinated time advancement and data exchange

4. Finalization: Clean shutdown, disconnect federates, release resources

First HELICS Program: Pi Exchange

We’ll start with a simple example that demonstrates the core HELICS concepts: a federate that calculates pi using a Monte Carlo method and another federate that receives and displays the results.

System Design

Pi Calculator Federate:

• Computes pi using Monte Carlo method (random points in circle vs square)

• Publishes pi estimates at regular intervals

• Improves accuracy over time by increasing sample size

Pi Receiver Federate:

• Subscribes to pi estimates from the calculator

• Displays received values and compares to true value

• Tracks improvement in accuracy over time

Implementation Strategy

We’ll implement both federates in the same notebook using Python threading to run them simultaneously.

# Import required libraries for the Pi exchange example
import threading
import time
import random
import math
from queue import Queue

# Verify threading capability
print("✓ Threading support available")
print("✓ Ready to implement Pi exchange example")

✓ Threading support available
✓ Ready to implement Pi exchange example

Pi Calculator Federate Implementation

def pi_calculator_federate():
    """
    HELICS federate that calculates pi using Monte Carlo method
    and publishes results for other federates to consume
    """

    print("[Pi Calculator] Starting federate...")

    # Step 1: Create federate info object
    fedinfo = h.helicsCreateFederateInfo()

    # Step 2: Configure federate properties
    h.helicsFederateInfoSetCoreName(fedinfo, "PiCalculator")
    h.helicsFederateInfoSetCoreTypeFromString(fedinfo, "zmq")
    h.helicsFederateInfoSetCoreInitString(fedinfo, "--federates=1")
    h.helicsFederateInfoSetTimeProperty(fedinfo, h.helics_property_time_delta, 0.01)

    # Step 3: Create the federate
    fed = h.helicsCreateValueFederate("PiCalculator", fedinfo)
    print("[Pi Calculator] ✓ Value federate created")

    # Step 4: Register publication
    pub = h.helicsFederateRegisterGlobalPublication(fed, "pi_estimate", h.HELICS_DATA_TYPE_DOUBLE, "")
    print("[Pi Calculator] ✓ Publication 'pi_estimate' registered")

    # Step 5: Enter execution mode
    print("[Pi Calculator] Entering execution mode...")
    h.helicsFederateEnterExecutingMode(fed)
    print("[Pi Calculator] ✓ Execution mode entered")

    # Step 6: Main simulation loop
    current_time = 0.0
    time_step = 1.0  # 1 second steps
    total_samples = 1000

    for step in range(10):  # Run for 10 time steps
        # Request permission to advance to next time
        next_time = (step + 1) * time_step
        current_time = h.helicsFederateRequestTime(fed, next_time)

        # Monte Carlo calculation of pi
        samples_in_circle = 0
        for _ in range(total_samples):
            x = random.uniform(-1, 1)
            y = random.uniform(-1, 1)
            if x*x + y*y <= 1:
                samples_in_circle += 1

        # Calculate pi estimate
        pi_estimate = 4 * samples_in_circle / total_samples
        error = abs(pi_estimate - math.pi)

        # Publish the result
        h.helicsPublicationPublishDouble(pub, pi_estimate)

        print(f"[Pi Calculator] Time {current_time:.1f}s: π ≈ {pi_estimate:.6f} (error: {error:.6f})")

        # Increase sample size for better accuracy
        total_samples += 500

    # Step 7: Finalize federate
    h.helicsFederateDestroy(fed)
    print("[Pi Calculator] ✓ Federate finalized")

Pi Receiver Federate Implementation

def pi_receiver_federate(results_queue):
    """
    HELICS federate that receives pi estimates from calculator
    and analyzes the accuracy improvement over time
    """

    print("[Pi Receiver] Starting federate...")

    # Step 1: Create federate info object
    fedinfo = h.helicsCreateFederateInfo()

    # Step 2: Configure federate properties
    h.helicsFederateInfoSetCoreName(fedinfo, "PiReceiver")
    h.helicsFederateInfoSetCoreTypeFromString(fedinfo, "zmq")
    h.helicsFederateInfoSetCoreInitString(fedinfo, "--federates=1")
    h.helicsFederateInfoSetTimeProperty(fedinfo, h.helics_property_time_delta, 0.01)

    # Step 3: Create the federate
    fed = h.helicsCreateValueFederate("PiReceiver", fedinfo)
    print("[Pi Receiver] ✓ Value federate created")

    # Step 4: Register subscription
    sub = h.helicsFederateRegisterSubscription(fed, "pi_estimate", "")
    print("[Pi Receiver] ✓ Subscription 'pi_estimate' registered")

    # Step 5: Enter execution mode
    print("[Pi Receiver] Entering execution mode...")
    h.helicsFederateEnterExecutingMode(fed)
    print("[Pi Receiver] ✓ Execution mode entered")

    # Step 6: Main simulation loop
    current_time = 0.0
    time_step = 1.0  # 1 second steps
    received_values = []

    for step in range(10):  # Run for 10 time steps
        # Request permission to advance to next time
        next_time = (step + 1) * time_step
        current_time = h.helicsFederateRequestTime(fed, next_time)

        # Check if new data is available
        if h.helicsInputIsUpdated(sub):
            # Receive the pi estimate
            pi_received = h.helicsInputGetDouble(sub)
            error = abs(pi_received - math.pi)
            received_values.append((current_time, pi_received, error))

            print(f"[Pi Receiver] Time {current_time:.1f}s: Received π = {pi_received:.6f} (error: {error:.6f})")
        else:
            print(f"[Pi Receiver] Time {current_time:.1f}s: No new data available")

    # Store results for analysis
    results_queue.put(received_values)

    # Step 7: Finalize federate
    h.helicsFederateDestroy(fed)
    print("[Pi Receiver] ✓ Federate finalized")

Results Analysis Function

def analyze_pi_results(received_values):
    """
    Analyze and visualize the pi estimation results
    """

    if not received_values:
        print("No results to analyze")
        return

    print("\n=== Results Analysis ===")

    # Extract data for plotting
    times = [item[0] for item in received_values]
    pi_estimates = [item[1] for item in received_values]
    errors = [item[2] for item in received_values]

    # Statistical analysis
    initial_error = errors[0] if errors else 0
    final_error = errors[-1] if errors else 0
    avg_error = sum(errors) / len(errors) if errors else 0
    improvement = ((initial_error - final_error) / initial_error * 100) if initial_error > 0 else 0

    print(f"Initial error: {initial_error:.6f}")
    print(f"Final error: {final_error:.6f}")
    print(f"Average error: {avg_error:.6f}")
    print(f"Improvement: {improvement:.1f}%")

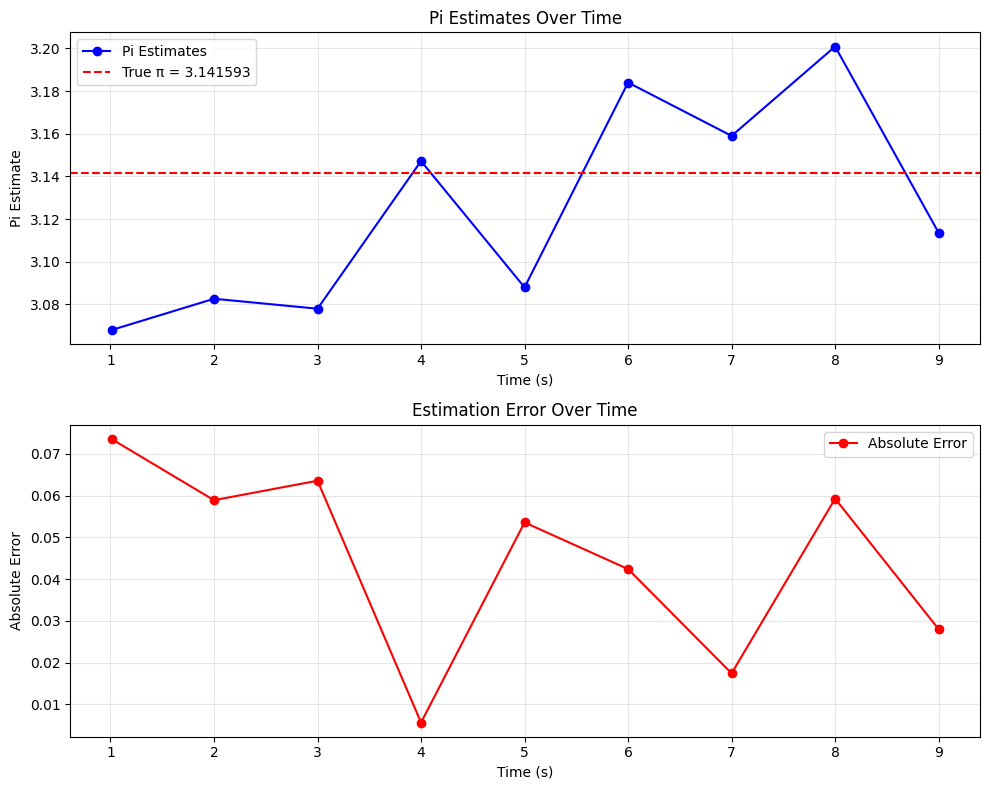

    # Create visualization
    fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(10, 8))

    # Plot pi estimates over time
    ax1.plot(times, pi_estimates, 'bo-', label='Pi Estimates')
    ax1.axhline(y=math.pi, color='r', linestyle='--', label=f'True π = {math.pi:.6f}')
    ax1.set_xlabel('Time (s)')
    ax1.set_ylabel('Pi Estimate')
    ax1.set_title('Pi Estimates Over Time')
    ax1.legend()
    ax1.grid(True, alpha=0.3)

    # Plot error over time
    ax2.plot(times, errors, 'ro-', label='Absolute Error')
    ax2.set_xlabel('Time (s)')
    ax2.set_ylabel('Absolute Error')
    ax2.set_title('Estimation Error Over Time')
    ax2.legend()
    ax2.grid(True, alpha=0.3)

    plt.tight_layout()
    plt.savefig('pi_cosimulation_results.png', dpi=300, bbox_inches='tight')
    plt.show()

    print("\n✓ Results analysis complete")
    print("Graph saved as 'pi_cosimulation_results.png'")

Running the Pi Exchange Co-Simulation

Now we’ll run both federates simultaneously using threading. First, we need to create a broker to coordinate the communication.

def run_pi_exchange_cosimulation():
    """
    Run the complete Pi exchange co-simulation with broker and federates
    """

    print("=== Starting Pi Exchange Co-Simulation ===")

    # Step 1: Create and start broker
    print("Creating HELICS broker...")
    broker = h.helicsCreateBroker("zmq", "", "-f 2 --name=mainbroker")

    # Verify broker is connected
    if h.helicsBrokerIsConnected(broker):
        print("✓ Broker created and connected successfully")
    else:
        print("✗ Broker connection failed")
        return

    # Step 2: Create queue for results
    results_queue = Queue()

    # Step 3: Create and start federate threads
    print("\nStarting federates...")

    # Start calculator federate thread
    calc_thread = threading.Thread(target=pi_calculator_federate)
    calc_thread.start()

    # Small delay to ensure calculator starts first
    time.sleep(0.5)

    # Start receiver federate thread
    recv_thread = threading.Thread(target=pi_receiver_federate, args=(results_queue,))
    recv_thread.start()

    # Step 4: Wait for federates to complete
    print("\nWaiting for federates to complete...")
    calc_thread.join(timeout=30)  # 30 second timeout
    recv_thread.join(timeout=30)

    # Step 5: Clean up broker
    h.helicsBrokerDestroy(broker)
    print("\n✓ Broker destroyed")

    # Step 6: Analyze results
    if not results_queue.empty():
        received_values = results_queue.get()
        analyze_pi_results(received_values)

    print("\n=== Co-Simulation Complete ===")

# Run the co-simulation
run_pi_exchange_cosimulation()

=== Starting Pi Exchange Co-Simulation ===
Creating HELICS broker...
✓ Broker created and connected successfully

Starting federates...
[Pi Calculator] Starting federate...
[Pi Calculator] ✓ Value federate created
[Pi Calculator] ✓ Publication 'pi_estimate' registered
[Pi Calculator] Entering execution mode...
[Pi Receiver] Starting federate...

Waiting for federates to complete...
[Pi Receiver] ✓ Value federate created
[Pi Receiver] ✓ Subscription 'pi_estimate' registered
[Pi Receiver] Entering execution mode...
[Pi Calculator] ✓ Execution mode entered
[Pi Receiver] ✓ Execution mode entered
[Pi Calculator] Time 1.0s: π ≈ 3.068000 (error: 0.073593)
[Pi Receiver] Time 1.0s: No new data available
[Pi Calculator] Time 2.0s: π ≈ 3.082667 (error: 0.058926)
[Pi Receiver] Time 1.0s: Received π = 3.068000 (error: 0.073593)
[Pi Calculator] Time 3.0s: π ≈ 3.078000 (error: 0.063593)
[Pi Receiver] Time 2.0s: Received π = 3.082667 (error: 0.058926)
[Pi Calculator] Time 4.0s: π ≈ 3.147200 (error: 0.005607)
[Pi Receiver] Time 3.0s: Received π = 3.078000 (error: 0.063593)
[Pi Calculator] Time 5.0s: π ≈ 3.088000 (error: 0.053593)
[Pi Receiver] Time 4.0s: Received π = 3.147200 (error: 0.005607)
[Pi Calculator] Time 6.0s: π ≈ 3.184000 (error: 0.042407)
[Pi Receiver] Time 5.0s: Received π = 3.088000 (error: 0.053593)
[Pi Receiver] Time 6.0s: Received π = 3.184000 (error: 0.042407)
[Pi Calculator] Time 7.0s: π ≈ 3.159000 (error: 0.017407)
[Pi Calculator] Time 8.0s: π ≈ 3.200889 (error: 0.059296)
[Pi Receiver] Time 7.0s: Received π = 3.159000 (error: 0.017407)
[Pi Calculator] Time 9.0s: π ≈ 3.113600 (error: 0.027993)
[Pi Receiver] Time 8.0s: Received π = 3.200889 (error: 0.059296)
[Pi Calculator] Time 10.0s: π ≈ 3.155636 (error: 0.014044)
[Pi Receiver] Time 9.0s: Received π = 3.113600 (error: 0.027993)
[Pi Receiver] ✓ Federate finalized
[Pi Calculator] ✓ Federate finalized

✓ Broker destroyed

=== Results Analysis ===
Initial error: 0.073593
Final error: 0.027993
Average error: 0.044713
Improvement: 62.0%

✓ Results analysis complete
Graph saved as 'pi_cosimulation_results.png'

=== Co-Simulation Complete ===

Enhanced Example: Temperature Control System

Now we’ll implement a more realistic example that demonstrates bidirectional communication: a temperature control system with a controller and a plant model.

System Design

Controller Federate:

• Implements a simple PID-style temperature controller

• Subscribes to temperature measurements from the plant

• Publishes control signals (heating/cooling commands)

• Maintains setpoint temperature

Plant Federate:

• Models a simple thermal system with first-order dynamics

• Subscribes to control signals from the controller

• Publishes current temperature measurements

• Includes thermal disturbances and realistic dynamics

class SimpleController:
    """
    Simple proportional controller for temperature regulation
    """

    def __init__(self, setpoint=25.0, kp=2.0):
        self.setpoint = setpoint  # Desired temperature (°C)
        self.kp = kp              # Proportional gain
        self.last_error = 0.0

    def calculate_control_signal(self, measured_temperature):
        """
        Calculate control signal based on temperature error
        """
        error = self.setpoint - measured_temperature
        control_signal = self.kp * error

        # Limit control signal to realistic range (-100 to +100 watts)
        control_signal = max(-100, min(100, control_signal))

        return control_signal

class SimplePlant:
    """
    Simple thermal plant model with first-order dynamics
    """

    def __init__(self, initial_temp=20.0, time_constant=10.0, ambient_temp=18.0):
        self.temperature = initial_temp  # Current temperature (°C)
        self.time_constant = time_constant  # Thermal time constant (seconds)
        self.ambient_temp = ambient_temp    # Ambient temperature (°C)
        self.thermal_mass = 1.0            # Simplified thermal mass

    def update_temperature(self, control_signal, dt=1.0):
        """
        Update temperature based on control signal and thermal dynamics
        """
        # Heat loss to ambient
        heat_loss = (self.temperature - self.ambient_temp) / self.time_constant

        # Heat input from control system (watts to temperature change)
        heat_input = control_signal * 0.1  # Simplified heat transfer coefficient

        # Temperature change using simple Euler integration
        temp_change = (heat_input - heat_loss) * dt
        self.temperature += temp_change

        return self.temperature

print("✓ Controller and Plant classes defined")

✓ Controller and Plant classes defined

Controller Federate Implementation

def temperature_controller_federate(results_queue):
    """
    HELICS federate implementing temperature controller
    """

    print("[Controller] Starting temperature controller federate...")

    # Create controller instance
    controller = SimpleController(setpoint=25.0, kp=2.0)

    # Create federate
    fedinfo = h.helicsCreateFederateInfo()
    h.helicsFederateInfoSetCoreName(fedinfo, "TemperatureController")
    h.helicsFederateInfoSetCoreTypeFromString(fedinfo, "zmq")
    h.helicsFederateInfoSetCoreInitString(fedinfo, "--federates=1")
    h.helicsFederateInfoSetTimeProperty(fedinfo, h.helics_property_time_delta, 0.01)

    fed = h.helicsCreateValueFederate("TemperatureController", fedinfo)
    print("[Controller] ✓ Federate created")

    # Register publication (control signal output)
    control_pub = h.helicsFederateRegisterGlobalPublication(fed, "control_signal", h.HELICS_DATA_TYPE_DOUBLE, "")

    # Register subscription (temperature measurement input)
    temp_sub = h.helicsFederateRegisterSubscription(fed, "temperature_measurement", "")

    print("[Controller] ✓ Publications and subscriptions registered")

    # Enter execution mode
    h.helicsFederateEnterExecutingMode(fed)
    print("[Controller] ✓ Entering execution mode")

    # Main control loop
    simulation_data = []
    current_time = 0.0
    time_step = 1.0

    for step in range(30):  # Run for 30 seconds
        # Request next time step
        next_time = (step + 1) * time_step
        current_time = h.helicsFederateRequestTime(fed, next_time)

        # Get temperature measurement
        measured_temp = 20.0  # Default initial temperature
        if h.helicsInputIsUpdated(temp_sub):
            measured_temp = h.helicsInputGetDouble(temp_sub)

        # Calculate control signal
        control_signal = controller.calculate_control_signal(measured_temp)

        # Publish control signal
        h.helicsPublicationPublishDouble(control_pub, control_signal)

        # Log data
        error = controller.setpoint - measured_temp
        simulation_data.append({
            'time': current_time,
            'temperature': measured_temp,
            'setpoint': controller.setpoint,
            'control_signal': control_signal,
            'error': error
        })

        print(f"[Controller] Time {current_time:2.0f}s: T={measured_temp:5.1f}°C, SP={controller.setpoint:.1f}°C, U={control_signal:6.1f}W, E={error:5.1f}°C")

    # Store results
    results_queue.put(('controller', simulation_data))

    # Finalize
    h.helicsFederateDestroy(fed)
    print("[Controller] ✓ Federate finalized")

Plant Federate Implementation

def analyze_temperature_control_results(results_queue):
    """
    Analyze and visualize temperature control results
    """

    # Collect results from both federates
    controller_data = None
    plant_data = None

    while not results_queue.empty():
        federate_type, data = results_queue.get()
        if federate_type == 'controller':
            controller_data = data
        elif federate_type == 'plant':
            plant_data = data

    if not controller_data or not plant_data:
        print("Insufficient data for analysis")
        return

    print("\n=== Temperature Control Analysis ===")

    # Extract time series data
    times = [item['time'] for item in controller_data]
    temperatures = [item['temperature'] for item in controller_data]
    setpoints = [item['setpoint'] for item in controller_data]
    control_signals = [item['control_signal'] for item in controller_data]
    errors = [item['error'] for item in controller_data]

    # Performance metrics
    settling_time = None
    steady_state_error = abs(errors[-1])
    max_overshoot = max([temp - setpoint for temp, setpoint in zip(temperatures, setpoints)])

    # Find settling time (within 2% of setpoint)
    tolerance = 0.02 * setpoints[0]
    for i, error in enumerate(errors):
        if abs(error) < tolerance and all(abs(e) < tolerance for e in errors[i:]):
            settling_time = times[i]
            break

    print(f"Steady-state error: {steady_state_error:.2f}°C")
    print(f"Maximum overshoot: {max_overshoot:.2f}°C")
    print(f"Settling time: {settling_time:.0f}s" if settling_time else "System did not settle within simulation time")

    # Create comprehensive visualization
    fig, ((ax1, ax2), (ax3, ax4)) = plt.subplots(2, 2, figsize=(15, 10))

    # Temperature vs setpoint
    ax1.plot(times, temperatures, 'b-', linewidth=2, label='Temperature')
    ax1.plot(times, setpoints, 'r--', linewidth=2, label='Setpoint')
    ax1.set_xlabel('Time (s)')
    ax1.set_ylabel('Temperature (°C)')
    ax1.set_title('Temperature Control Response')
    ax1.legend()
    ax1.grid(True, alpha=0.3)

    # Control signal
    ax2.plot(times, control_signals, 'g-', linewidth=2)
    ax2.set_xlabel('Time (s)')
    ax2.set_ylabel('Control Signal (W)')
    ax2.set_title('Controller Output')
    ax2.grid(True, alpha=0.3)

    # Temperature error
    ax3.plot(times, errors, 'r-', linewidth=2)
    ax3.axhline(y=0, color='k', linestyle='--', alpha=0.5)
    ax3.set_xlabel('Time (s)')
    ax3.set_ylabel('Error (°C)')
    ax3.set_title('Temperature Error')
    ax3.grid(True, alpha=0.3)

    # Phase plot (temperature vs control signal)
    ax4.plot(control_signals, temperatures, 'b-', alpha=0.7)
    ax4.scatter(control_signals[0], temperatures[0], color='green', s=100, label='Start', zorder=5)
    ax4.scatter(control_signals[-1], temperatures[-1], color='red', s=100, label='End', zorder=5)
    ax4.set_xlabel('Control Signal (W)')
    ax4.set_ylabel('Temperature (°C)')
    ax4.set_title('Phase Plot')
    ax4.legend()
    ax4.grid(True, alpha=0.3)

    plt.tight_layout()
    plt.savefig('temperature_control_results.png', dpi=300, bbox_inches='tight')
    plt.show()

    print("\n✓ Temperature control analysis complete")
    print("Graph saved as 'temperature_control_results.png'")

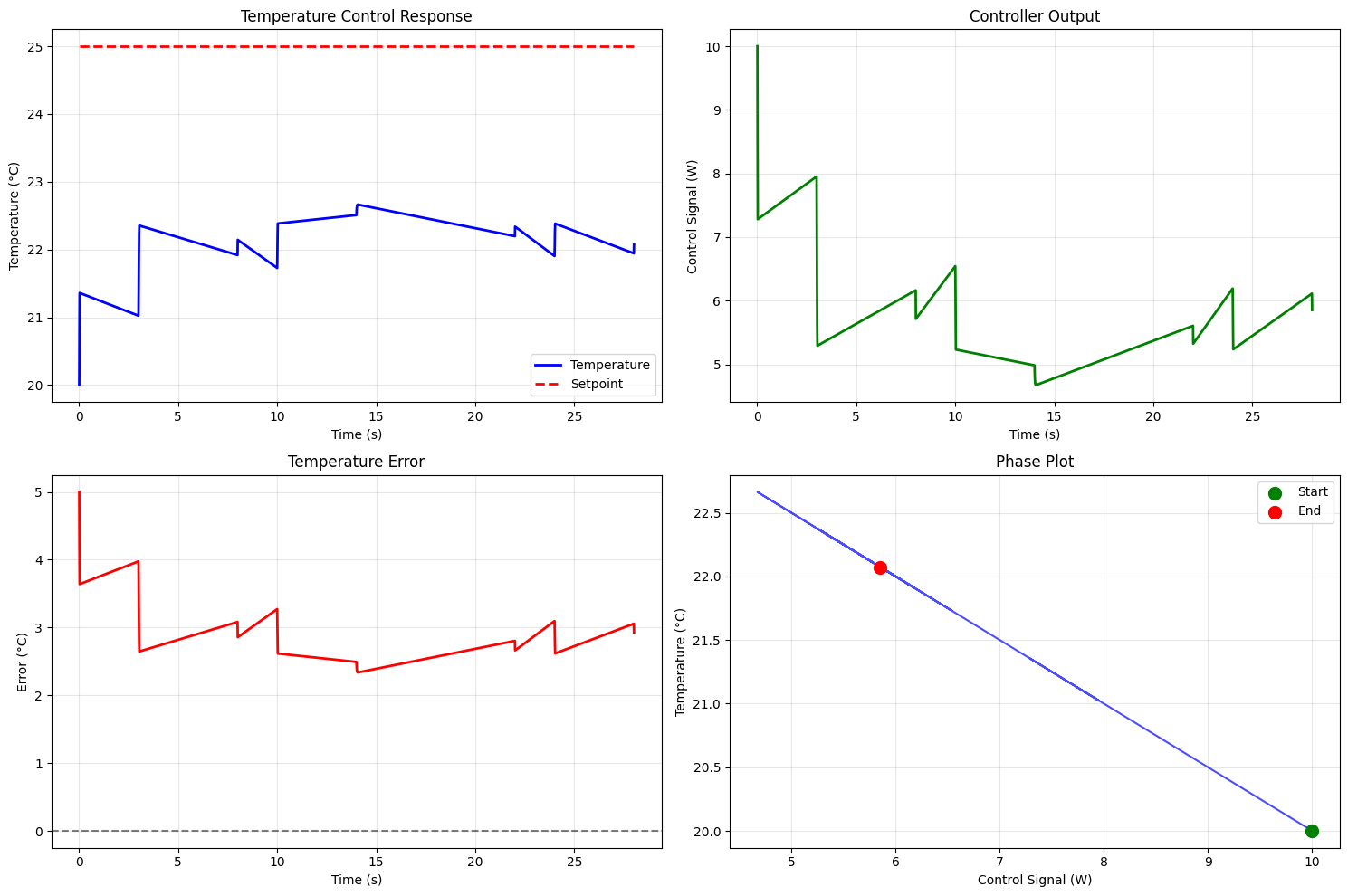

Temperature Control Results Analysis

def temperature_plant_federate(results_queue):
    """
    HELICS federate implementing thermal plant model
    """

    print("[Plant] Starting thermal plant federate...")

    # Create plant instance
    plant = SimplePlant(initial_temp=20.0, time_constant=10.0, ambient_temp=18.0)

    # Create federate
    fedinfo = h.helicsCreateFederateInfo()
    h.helicsFederateInfoSetCoreName(fedinfo, "ThermalPlant")
    h.helicsFederateInfoSetCoreTypeFromString(fedinfo, "zmq")
    h.helicsFederateInfoSetCoreInitString(fedinfo, "--federates=1")
    h.helicsFederateInfoSetTimeProperty(fedinfo, h.helics_property_time_delta, 0.01)

    fed = h.helicsCreateValueFederate("ThermalPlant", fedinfo)
    print("[Plant] ✓ Federate created")

    # Register publication (temperature measurement output)
    temp_pub = h.helicsFederateRegisterGlobalPublication(fed, "temperature_measurement", h.HELICS_DATA_TYPE_DOUBLE, "")

    # Register subscription (control signal input)
    control_sub = h.helicsFederateRegisterSubscription(fed, "control_signal", "")

    print("[Plant] ✓ Publications and subscriptions registered")

    # Enter execution mode
    h.helicsFederateEnterExecutingMode(fed)
    print("[Plant] ✓ Entering execution mode")

    # Publish initial temperature
    h.helicsPublicationPublishDouble(temp_pub, plant.temperature)

    # Main simulation loop
    simulation_data = []
    current_time = 0.0
    time_step = 1.0

    for step in range(30):  # Run for 30 seconds
        # Request next time step
        next_time = (step + 1) * time_step
        current_time = h.helicsFederateRequestTime(fed, next_time)

        # Get control signal
        control_signal = 0.0  # Default no control
        if h.helicsInputIsUpdated(control_sub):
            control_signal = h.helicsInputGetDouble(control_sub)

        # Update plant dynamics
        new_temperature = plant.update_temperature(control_signal, dt=time_step)

        # Publish temperature measurement
        h.helicsPublicationPublishDouble(temp_pub, new_temperature)

        # Log data
        simulation_data.append({
            'time': current_time,
            'temperature': new_temperature,
            'control_signal': control_signal
        })

        print(f"[Plant] Time {current_time:2.0f}s: T={new_temperature:5.1f}°C, U={control_signal:6.1f}W")

    # Store results
    results_queue.put(('plant', simulation_data))

    # Finalize
    h.helicsFederateDestroy(fed)
    print("[Plant] ✓ Federate finalized")

Running the Temperature Control Co-Simulation

def run_temperature_control_cosimulation():
    """
    Run the complete temperature control co-simulation
    """

    print("=== Starting Temperature Control Co-Simulation ===")

    # Create broker
    broker = h.helicsCreateBroker("zmq", "", "-f 2 --name=tempbroker")

    if h.helicsBrokerIsConnected(broker):
        print("✓ Broker created and connected")
    else:
        print("✗ Broker connection failed")
        return

    # Create results queue
    results_queue = Queue()

    # Start federates
    print("\nStarting federates...")

    # Start plant federate first (it publishes initial temperature)
    plant_thread = threading.Thread(target=temperature_plant_federate, args=(results_queue,))
    plant_thread.start()

    time.sleep(0.5)  # Brief delay

    # Start controller federate
    controller_thread = threading.Thread(target=temperature_controller_federate, args=(results_queue,))
    controller_thread.start()

    # Wait for completion
    print("\nWaiting for federates to complete...")
    plant_thread.join(timeout=60)
    controller_thread.join(timeout=60)

    # Clean up
    h.helicsBrokerDestroy(broker)
    print("\n✓ Broker destroyed")

    # Analyze results
    analyze_temperature_control_results(results_queue)

    print("\n=== Temperature Control Co-Simulation Complete ===")

# Run the temperature control co-simulation
run_temperature_control_cosimulation()

=== Starting Temperature Control Co-Simulation ===
✓ Broker created and connected

Starting federates...
[Plant] Starting thermal plant federate...
[Plant] ✓ Federate created
[Plant] ✓ Publications and subscriptions registered
[Controller] Starting temperature controller federate...
Waiting for federates to complete...

[Controller] ✓ Federate created
[Controller] ✓ Publications and subscriptions registered
[Controller] ✓ Entering execution mode
[Plant] ✓ Entering execution mode
[Controller] Time  0s: T= 20.0°C, SP=25.0°C, U=  10.0W, E=  5.0°C
[Plant] Time  0s: T= 20.8°C, U=  10.0W
[Controller] Time  0s: T= 20.8°C, SP=25.0°C, U=   8.4W, E=  4.2°C
[Plant] Time  0s: T= 21.4°C, U=   8.4W
[Plant] Time  3s: T= 21.0°C, U=   0.0W
[Controller] Time  0s: T= 21.4°C, SP=25.0°C, U=   7.3W, E=  3.6°C
[Plant] Time  3s: T= 21.4°C, U=   7.3W
[Controller] Time  3s: T= 21.0°C, SP=25.0°C, U=   8.0W, E=  4.0°C
[Controller] Time  3s: T= 21.4°C, SP=25.0°C, U=   7.1W, E=  3.6°C
[Plant] Time  3s: T= 21.9°C, U=   8.0W
[Plant] Time  3s: T= 22.2°C, U=   7.1W
[Controller] Time  3s: T= 21.9°C, SP=25.0°C, U=   6.2W, E=  3.1°C
[Controller] Time  3s: T= 22.2°C, SP=25.0°C, U=   5.6W, E=  2.8°C
[Plant] Time  3s: T= 22.4°C, U=   5.6W
[Plant] Time  8s: T= 21.9°C, U=   0.0W
[Controller] Time  3s: T= 22.4°C, SP=25.0°C, U=   5.3W, E=  2.6°C
[Controller] Time  8s: T= 21.9°C, SP=25.0°C, U=   6.2W, E=  3.1°C
[Plant] Time  8s: T= 22.1°C, U=   6.2W
[Plant] Time 10s: T= 21.7°C, U=   0.0W
[Controller] Time  8s: T= 22.1°C, SP=25.0°C, U=   5.7W, E=  2.9°C
[Controller] Time 10s: T= 21.7°C, SP=25.0°C, U=   6.5W, E=  3.3°C
[Plant] Time 10s: T= 21.9°C, U=   5.7W
[Plant] Time 10s: T= 22.2°C, U=   6.5W
[Controller] Time 10s: T= 21.9°C, SP=25.0°C, U=   6.1W, E=  3.1°C
[Controller] Time 10s: T= 22.2°C, SP=25.0°C, U=   5.6W, E=  2.8°C
[Plant] Time 10s: T= 22.4°C, U=   6.1W
[Plant] Time 14s: T= 22.5°C, U=   5.6W
[Controller] Time 10s: T= 22.4°C, SP=25.0°C, U=   5.2W, E=  2.6°C
[Controller] Time 14s: T= 22.5°C, SP=25.0°C, U=   5.0W, E=  2.5°C
[Plant] Time 14s: T= 22.6°C, U=   5.2W
[Plant] Time 14s: T= 22.6°C, U=   5.0W
[Controller] Time 14s: T= 22.6°C, SP=25.0°C, U=   4.8W, E=  2.4°C
[Controller] Time 14s: T= 22.6°C, SP=25.0°C, U=   4.8W, E=  2.4°C
[Plant] Time 14s: T= 22.6°C, U=   4.8W
[Controller] Time 14s: T= 22.6°C, SP=25.0°C, U=   4.7W, E=  2.4°C
[Plant] Time 14s: T= 22.7°C, U=   4.8W
[Plant] Time 14s: T= 22.7°C, U=   4.7W
[Controller] Time 14s: T= 22.7°C, SP=25.0°C, U=   4.7W, E=  2.3°C
[Controller] Time 14s: T= 22.7°C, SP=25.0°C, U=   4.7W, E=  2.3°C
[Plant] Time 14s: T= 22.7°C, U=   4.7W
[Controller] Time 14s: T= 22.7°C, SP=25.0°C, U=   4.7W, E=  2.3°C
[Plant] Time 14s: T= 22.7°C, U=   4.7W
[Plant] Time 22s: T= 22.2°C, U=   0.0W
[Controller] Time 14s: T= 22.7°C, SP=25.0°C, U=   4.7W, E=  2.3°C
[Controller] Time 22s: T= 22.2°C, SP=25.0°C, U=   5.6W, E=  2.8°C
[Plant] Time 22s: T= 22.3°C, U=   5.6W
[Plant] Time 24s: T= 21.9°C, U=   0.0W
[Controller] Time 22s: T= 22.3°C, SP=25.0°C, U=   5.3W, E=  2.7°C
[Controller] Time 24s: T= 21.9°C, SP=25.0°C, U=   6.2W, E=  3.1°C
[Plant] Time 24s: T= 22.0°C, U=   5.3W
[Plant] Time 24s: T= 22.3°C, U=   6.2W
[Controller] Time 24s: T= 22.0°C, SP=25.0°C, U=   5.9W, E=  3.0°C
[Controller] Time 24s: T= 22.3°C, SP=25.0°C, U=   5.5W, E=  2.7°C
[Plant] Time 24s: T= 22.4°C, U=   5.5W
[Plant] Time 28s: T= 21.9°C, U=   0.0W
[Controller] Time 24s: T= 22.4°C, SP=25.0°C, U=   5.2W, E=  2.6°C
[Plant] Time 28s: T= 22.1°C, U=   5.2W
[Controller] Time 28s: T= 21.9°C, SP=25.0°C, U=   6.1W, E=  3.1°C
[Controller] Time 28s: T= 22.1°C, SP=25.0°C, U=   5.9W, E=  2.9°C
[Plant] Time 28s: T= 22.3°C, U=   6.1W
[Controller] ✓ Federate finalized
[2025-07-27 02:20:08.231] [console] [warning] commWarning||tempbroker (1)[operating]::unknown route and no broker, dropping message pub:From (131072) handle(1) size 16 at 28.02 to 131073
[Plant] ✓ Federate finalized

✓ Broker destroyed

=== Temperature Control Analysis ===
Steady-state error: 2.93°C
Maximum overshoot: -2.34°C
System did not settle within simulation time

✓ Temperature control analysis complete
Graph saved as 'temperature_control_results.png'

=== Temperature Control Co-Simulation Complete ===

JSON Configuration Alternative

While we’ve been configuring federates programmatically, HELICS also supports JSON configuration files for cleaner separation of configuration and implementation logic.

Example JSON Configuration

Not working

The example is not working and needs fixing.

# Create example JSON configuration files
import json

# Controller configuration
controller_config = {
    "name": "TemperatureController",
    "core_type": "zmq",
    "core_init_string": "--federates=1",
    "period": 1.0,
    "publications": [
        {
            "key": "control_signal",
            "type": "double",
            "global": True,
            "info": "Control signal output in watts"
        }
    ],
    "subscriptions": [
        {
            "key": "temperature_measurement",
            "type": "double",
            "info": "Temperature measurement input in Celsius"
        }
    ]
}

# Plant configuration
plant_config = {
    "name": "ThermalPlant",
    "autobroker": True,
    "coreType": "zmq",
    "coreInit": "--federates=1",
    "period": 1.0,
    "publications": [
        {
            "key": "temperature_measurement",
            "type": "double",
            "global": True,
            "info": "Temperature measurement output in Celsius"
        }
    ],
    "subscriptions": [
        {
            "key": "control_signal",
            "type": "double",
            "info": "Control signal input in watts"
        }
    ]
}

# Save configuration files
with open('controller_config.json', 'w') as f:
    json.dump(controller_config, f, indent=2)

with open('plant_config.json', 'w') as f:
    json.dump(plant_config, f, indent=2)

print("✓ JSON configuration files created")
print("  - controller_config.json")
print("  - plant_config.json")

✓ JSON configuration files created
  - controller_config.json
  - plant_config.json

Using JSON Configuration

Here’s how to use JSON configuration instead of programmatic setup:

def create_federate_from_json(config_file):
    """
    Demonstrate creating a federate from JSON configuration
    """

    print(f"Creating federate from {config_file}...")

    try:
        # Create federate from JSON config
        fed = h.helicsCreateValueFederateFromConfig(config_file)

        # Get federate name from configuration
        fed_name = h.helicsFederateGetName(fed)
        print(f"✓ Federate '{fed_name}' created successfully from JSON")

        # Clean up (don't actually run)
        h.helicsFederateDestroy(fed)

    except Exception as e:
        print(f"✗ Failed to create federate from JSON: {e}")

# Demonstrate JSON configuration usage
create_federate_from_json('controller_config.json')
create_federate_from_json('plant_config.json')

Creating federate from controller_config.json...
[2025-07-27 02:20:14.697] [console] [warning] commWarning||TemperatureController_core_6xuD0n (0)[connecting]::zmq broker connection timed out, trying again (2)
[2025-07-27 02:20:14.697] [console] [warning] commWarning||TemperatureController_core_6xuD0n (0)[connecting]::sending message to tcp://127.0.0.1:23405
[2025-07-27 02:20:34.718] [console] [error] commERROR||TemperatureController_core_6xuD0n (0)[connecting]::zmq broker connection timed out after trying 5 times (2)
[2025-07-27 02:20:34.718] [console] [error] commERROR||TemperatureController_core_6xuD0n (0)[connecting]::receiver connection failure
✗ Failed to create federate from JSON: [-1] Unable to connect to broker->unable to register federate
Creating federate from plant_config.json...
✗ Failed to create federate from JSON: [-1] Unable to connect to broker->unable to register federate

Debugging and Troubleshooting

Common Issues and Solutions

Understanding how to debug HELICS co-simulations is essential for successful implementation. Due to the distributed nature, debugging co-simulation code is usually more complex than debugging individual scripts.

def helics_diagnostic_check():
    """
    Comprehensive diagnostic check for HELICS functionality
    """

    print("=== HELICS Diagnostic Check ===")

    # Check 1: HELICS import and version
    try:
        import helics as h
        version = h.helicsGetVersion()
        print(f"✓ HELICS {version} imported successfully")
    except ImportError as e:
        print(f"✗ HELICS import failed: {e}")
        print("  Solution: Ensure 'cosim' environment is activated and HELICS is installed")
        return False

    # Check 2: Broker creation and connection
    try:
        broker = h.helicsCreateBroker("zmq", "", "-f 1 --name=diagnostic")
        if h.helicsBrokerIsConnected(broker):
            print("✓ Broker creation and connection successful")
            h.helicsBrokerDestroy(broker)
        else:
            print("✗ Broker created but not connected")
            print("  Solution: Check network configuration and port availability")
            return False
    except Exception as e:
        print(f"✗ Broker creation failed: {e}")
        print("  Solution: Check ZMQ installation and system resources")
        return False

    # Check 3: Federate creation
    try:
        fedinfo = h.helicsCreateFederateInfo()
        h.helicsFederateInfoSetCoreName(fedinfo, "DiagnosticTest")
        h.helicsFederateInfoSetCoreTypeFromString(fedinfo, "zmq")

        fed = h.helicsCreateValueFederate("DiagnosticTest", fedinfo)
        print("✓ Federate creation successful")
        h.helicsFederateDestroy(fed)
    except Exception as e:
        print(f"✗ Federate creation failed: {e}")
        print("  Solution: Check federate configuration and broker availability")
        return False

    # Check 4: Publication/Subscription registration
    try:
        fedinfo = h.helicsCreateFederateInfo()
        fed = h.helicsCreateValueFederate("DiagnosticTest2", fedinfo)

        pub = h.helicsFederateRegisterGlobalPublication(fed, "test_pub", h.HELICS_DATA_TYPE_DOUBLE, "")
        sub = h.helicsFederateRegisterSubscription(fed, "test_sub", "")

        print("✓ Publication/Subscription registration successful")
        h.helicsFederateDestroy(fed)
    except Exception as e:
        print(f"✗ Pub/Sub registration failed: {e}")
        print("  Solution: Check publication/subscription names and types")
        return False

    print("\n✅ All diagnostic checks passed!")
    return True

# Run diagnostic check
helics_diagnostic_check()

=== HELICS Diagnostic Check ===
✓ HELICS 3.6.1 (2025-02-24) imported successfully
✓ Broker creation and connection successful
[2025-07-27 02:20:38.861] [console] [warning] commWarning||DiagnosticTest (0)[connecting]::zmq broker connection timed out, trying again (2)
[2025-07-27 02:20:38.861] [console] [warning] commWarning||DiagnosticTest (0)[connecting]::sending message to tcp://127.0.0.1:23405
[2025-07-27 02:20:58.880] [console] [error] commERROR||DiagnosticTest (0)[connecting]::zmq broker connection timed out after trying 5 times (2)
✗ Federate creation failed: [-1] Unable to connect to broker->unable to register federate
  Solution: Check federate configuration and broker availability

False

[2025-07-27 02:20:58.880] [console] [error] commERROR||DiagnosticTest (0)[connecting]::receiver connection failure

Common Error Scenarios and Solutions

1. Broker Connection Failures

• Symptoms: Federates hang during creation or entering execution mode

• Causes: Network issues, port conflicts, incorrect broker configuration

• Solutions: Restart broker, check port availability, verify network settings

2. Time Synchronization Issues

• Symptoms: Federates advance at different rates, simulation hangs

• Causes: Incorrect time delta settings, missing time requests

• Solutions: Verify time request logic, check time delta configuration

3. Publication/Subscription Mismatches

• Symptoms: No data exchange, incorrect values received

• Causes: Name mismatches, type incompatibilities, timing issues

• Solutions: Verify names and types, check update flags

4. Federate Execution Hangs

• Symptoms: Federates stop responding, infinite waits

• Causes: Missing federates, incorrect execution mode entry

• Solutions: Ensure all federates enter execution mode, implement timeouts

Best Practices for HELICS Development

1. Start Simple: Begin with minimal examples and add complexity gradually

2. Use Descriptive Names: Clear publication and subscription names prevent confusion

3. Implement Timeouts: Prevent infinite hangs with appropriate timeouts

4. Log Extensively: Use print statements or logging to track federate behavior

5. Test Incrementally: Verify each component before integration

6. Handle Errors Gracefully: Implement proper error handling and cleanup

Hands-On Exercise: Data Logger Federate

Now it’s time to apply what we’ve learned. We’ll extend our temperature control system by adding a third federate that logs data from both the controller and plant.

Exercise Requirements

Create a Data Logger Federate that:

1. Subscribes to both temperature measurements and control signals

2. Logs all data to a CSV file with timestamps

3. Calculates and displays real-time statistics

4. Creates a summary report at the end of simulation

Implementation Template

Complete the missing parts in the template below:

import csv

def data_logger_federate():
    """
    HELICS federate that logs data from temperature control system

    TODO: Complete this implementation
    """

    print("[Logger] Starting data logger federate...")

    # TODO 1: Create federate (similar to previous examples)
    fedinfo = h.helicsCreateFederateInfo()
    # Add your federate configuration here

    fed = h.helicsCreateValueFederate("DataLogger", fedinfo)
    print("[Logger] ✓ Federate created")

    # TODO 2: Register subscriptions for temperature and control signal
    temp_sub = None  # Subscribe to "temperature_measurement"
    control_sub = None  # Subscribe to "control_signal"

    # TODO 3: Enter execution mode
    # Add code here

    # TODO 4: Create CSV file for logging
    csv_filename = "temperature_control_log.csv"
    with open(csv_filename, 'w', newline='') as csvfile:
        fieldnames = ['time', 'temperature', 'control_signal']
        writer = csv.DictWriter(csvfile, fieldnames=fieldnames)
        writer.writeheader()

        # TODO 5: Main logging loop (30 time steps)
        current_time = 0.0
        time_step = 1.0
        logged_data = []

        for step in range(30):
            # TODO: Request next time step

            # TODO: Get temperature and control signal values
            temperature = 0.0
            control_signal = 0.0

            # Log data
            data_point = {
                'time': current_time,
                'temperature': temperature,
                'control_signal': control_signal
            }

            writer.writerow(data_point)
            logged_data.append(data_point)

            print(f"[Logger] Time {current_time:2.0f}s: Logged T={temperature:5.1f}°C, U={control_signal:6.1f}W")

    # TODO 6: Generate summary statistics
    if logged_data:
        temperatures = [d['temperature'] for d in logged_data]
        control_signals = [d['control_signal'] for d in logged_data]

        print("\n[Logger] === Summary Statistics ===")
        print(f"Temperature: min={min(temperatures):.1f}, max={max(temperatures):.1f}, avg={sum(temperatures)/len(temperatures):.1f}°C")
        print(f"Control: min={min(control_signals):.1f}, max={max(control_signals):.1f}, avg={sum(control_signals)/len(control_signals):.1f}W")

    # TODO 7: Finalize federate
    # Add cleanup code here

    print(f"[Logger] ✓ Data logged to {csv_filename}")
    print("[Logger] ✓ Federate finalized")

print("✓ Data logger template created")
print("Complete the TODO items to implement the data logger federate")

✓ Data logger template created
Complete the TODO items to implement the data logger federate

Exercise Solution

Here’s the complete implementation of the data logger federate:

def data_logger_federate_solution():
    """
    Complete implementation of data logger federate
    """

    print("[Logger] Starting data logger federate...")

    # Create federate
    fedinfo = h.helicsCreateFederateInfo()
    h.helicsFederateInfoSetCoreName(fedinfo, "DataLogger")
    h.helicsFederateInfoSetCoreTypeFromString(fedinfo, "zmq")
    h.helicsFederateInfoSetCoreInitString(fedinfo, "--federates=1")
    h.helicsFederateInfoSetTimeProperty(fedinfo, h.helics_property_time_delta, 0.01)

    fed = h.helicsCreateValueFederate("DataLogger", fedinfo)
    print("[Logger] ✓ Federate created")

    # Register subscriptions
    temp_sub = h.helicsFederateRegisterSubscription(fed, "temperature_measurement", "")
    control_sub = h.helicsFederateRegisterSubscription(fed, "control_signal", "")
    print("[Logger] ✓ Subscriptions registered")

    # Enter execution mode
    h.helicsFederateEnterExecutingMode(fed)
    print("[Logger] ✓ Entering execution mode")

    # Create CSV file for logging
    csv_filename = "temperature_control_log.csv"
    with open(csv_filename, 'w', newline='') as csvfile:
        fieldnames = ['time', 'temperature', 'control_signal']
        writer = csv.DictWriter(csvfile, fieldnames=fieldnames)
        writer.writeheader()

        # Main logging loop
        current_time = 0.0
        time_step = 1.0
        logged_data = []

        for step in range(30):
            # Request next time step
            next_time = (step + 1) * time_step
            current_time = h.helicsFederateRequestTime(fed, next_time)

            # Get temperature measurement
            temperature = 20.0  # Default value
            if h.helicsInputIsUpdated(temp_sub):
                temperature = h.helicsInputGetDouble(temp_sub)

            # Get control signal
            control_signal = 0.0  # Default value
            if h.helicsInputIsUpdated(control_sub):
                control_signal = h.helicsInputGetDouble(control_sub)

            # Log data
            data_point = {
                'time': current_time,
                'temperature': temperature,
                'control_signal': control_signal
            }

            writer.writerow(data_point)
            logged_data.append(data_point)

            print(f"[Logger] Time {current_time:2.0f}s: Logged T={temperature:5.1f}°C, U={control_signal:6.1f}W")

    # Generate summary statistics
    if logged_data:
        temperatures = [d['temperature'] for d in logged_data]
        control_signals = [d['control_signal'] for d in logged_data]

        print("\n[Logger] === Summary Statistics ===")
        print(f"Temperature: min={min(temperatures):.1f}, max={max(temperatures):.1f}, avg={sum(temperatures)/len(temperatures):.1f}°C")
        print(f"Control: min={min(control_signals):.1f}, max={max(control_signals):.1f}, avg={sum(control_signals)/len(control_signals):.1f}W")

    # Finalize federate
    h.helicsFederateDestroy(fed)

    print(f"[Logger] ✓ Data logged to {csv_filename}")
    print("[Logger] ✓ Federate finalized")

✓ Data logger solution implemented
This federate can be integrated into the temperature control co-simulation

Summary and Key Takeaways

What We’ve Learned

In this lesson, we’ve covered the fundamental concepts and practical implementation of HELICS co-simulation:

1. Core Concepts:

   • Brokers coordinate communication between federates

   • Federates are independent simulation entities

   • Publication/subscription model enables scalable data exchange

   • Time management ensures coordinated execution

2. Implementation Skills:

   • Creating and configuring HELICS federates

   • Implementing publication and subscription interfaces

   • Managing co-simulation execution and time synchronization

   • Using both programmatic and JSON configuration approaches

3. Practical Examples:

   • Pi exchange: Simple unidirectional communication

   • Temperature control: Bidirectional feedback system

   • Data logging: Multi-subscription federate design

4. Debugging Skills:

   • Common error identification and resolution

   • Diagnostic procedures for HELICS issues

   • Best practices for robust co-simulation development

Preparation for Advanced Topics

The skills developed in this lesson provide the foundation for more advanced applications:

• Power System Co-simulation: Using HELICS to coordinate transmission and distribution simulators

• Multi-Domain Modeling: Integrating electrical, mechanical, thermal, and communication systems

• Large-Scale Simulations: Scaling to hundreds or thousands of federates

• Real-Time Applications: Hardware-in-the-loop and real-time co-simulation

Next Steps

In the next lesson, we will apply these HELICS fundamentals to power system co-simulation, where we’ll:

• Connect transmission system simulators (ANDES) with distribution system simulators (OpenDSS)

• Exchange power flow data between different voltage levels

• Analyze the interactions between transmission and distribution operations

• Understand the practical challenges of multi-domain power system simulation

Self-Assessment

Before proceeding to the next lesson, ensure that:

• All code examples in this notebook execute successfully

• The diagnostic check passes without errors

• The temperature control co-simulation produces reasonable results

• The data logger exercise is completed successfully

• Key HELICS concepts are clearly understood

If any of these items are incomplete, review the relevant sections and seek assistance as needed.

References and Additional Resources

HELICS Documentation

• Official Documentation: https://docs.helics.org/

• Python API Reference: https://python.helics.org/

• Tutorial Repository: GMLC-TDC/HELICS-Tutorial

Academic Papers

• Hardy, T. D., et al. “HELICS: A co-simulation framework for scalable multi-domain modeling and analysis.” IEEE Access 12 (2024): 24325-24347.

• Top, P., et al. “The HELICS co-simulation framework.” 2017 Workshop on Modeling and Simulation of Cyber-Physical Energy Systems (MSCPES). IEEE, 2017.

Community Resources

• HELICS Gitter Chat: https://gitter.im/GMLC-TDC/HELICS

• GitHub Issues: GMLC-TDC/HELICS#issues

• User Forum: GMLC-TDC/HELICS#discussions
