Nonlinear Equations#
Information |
Details |
|---|---|
Lead Author |
Hantao Cui |
Learning Objectives |
• Understand nonlinear equation fundamentals |
Prerequisites |
Python basics, NumPy knowledge |
Estimated Time |
120 minutes |
Topics |
Nonlinear equations, Newton-Raphson method, numerical methods, root finding, residual functions, SciPy solvers |
Introduction to Nonlinear Equations#
Nonlinear equations are ubiquitous in scientific computing. In power systems, AC power flow equations are nonlinear equations.
Start from a univariate scalar function. The standard form of a nonlinear equations is:
where f is the function and x is the variable. In other
words, solving this nonlinear equation means finding the root of this function. This
function is called the residual function, because if we plug in non-solutions \(x_{nsol}\),
f(x_{nsol}) will be some non-zero value called the residual.
When we plug in the solution \(x_{so l}\), the value f(x_{sol}) will be zero.
How Computers Solve Equations#
It is important to understand that computers do not directly “solve” equations in the same way as humans do algebra. Instead, computers find solutions through numerical methods that can find numbers to make the functions evaluate to zero. This key insight is fundamental to computational approaches:
To solve an equation f(x) = g(x), computers reformulate it as finding roots of f(x) - g(x) = 0.
For example, to solve the equation \(x^2 = 4\), a computer actually finds where the residual function \(r(x) = x^2 - 4\) equals zero. The roots of this residual function (\(x = 2\) and \(x = -2\)) makes the respective residuals \(r(2) = r(-2) = 0\).
A Set of Nonlinear Equations#
Going from a single equation to a set of equations, the standard form becomes:
where:
\(\mathbf{f}\) is a vector of functions
\(\mathbf{x}\) is the vector of variables we are solving for
Specifically, \(\mathbf{f}\) is a vector of functions of the form:
Tolerance
In numerical computing, we accept solutions where the residual is smaller than some specified tolerance (e.g., \(10_{-6}\). We find inputs that make the residual function sufficiently close to zero.
Length of the unknown vector x
The number of elements in the unknown vector \(\mathbf{x}\) is the same as the number of equations.
Newton Method#
The Newton-Raphson method is one of the most powerful techniques for solving nonlinear equations. It is worth understanding this fundamental algorithm, as many nonlinear solvers use variations of it.
Basic Concept#
Newton-Raphson leverages linear approximations to iteratively approach the solution of nonlinear equations. Starting from an initial guess \(x_0\), the method uses the tangent line of the function at \(x_0\) to approximate the function, and find the root of the tangent line. Repeating this process, we can iteratively approach the root of the function.
Starting from \(x_0\), based on Taylor series, the tangent line of \(f(x)\) at \(x_0\) is given by:
The root \(x_1\) of the first tangent line is given by:
Solving for \(x_1\), we get:
\(x_1\) is one step closer to the root of \(f(x) = 0\). This process is repeated until the residual is smaller than a specified tolerance.
To generalize, for a single equation \(f(x) = 0\), iteration \(k+1\) is given by:
where \(f'(x_k)\) is the derivative evaluated at the current iteration \(k\).
Visual Example#

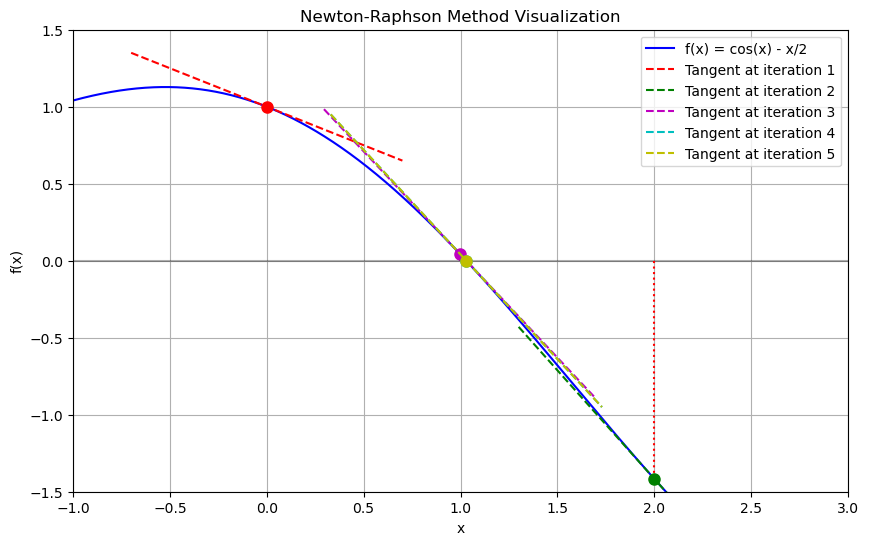

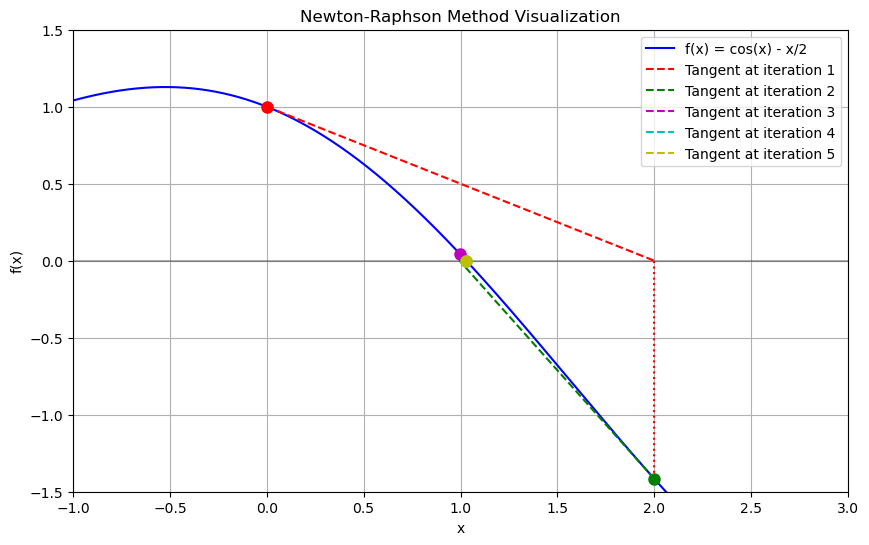

Let’s visualize Newton-Raphson for finding a root of \(f(x) = \cos(x) - x/2\). The residual function \(f(x)\) and its derivative \(f'(x)\) are given below:
import numpy as np
def f(x):
return np.cos(x) - x / 2
def df(x):
return -np.sin(x) - 1 / 2
def newton_step(x):
return x - f(x) / df(x)
Iteration 1: x = 2.00000000, f(x) = -1.41614684
Iteration 2: x = 0.99513984, f(x) = 0.04681567
Iteration 3: x = 1.03010731, f(x) = -0.00032681
Iteration 4: x = 1.02986654, f(x) = -0.00000001
Iteration 5: x = 1.02986653, f(x) = 0.00000000
Note that the convergence accelerates as we approach the solution. That is, the change in \(x\) becomes small after iteration 3 in this example.
Extension to Systems of Equations#
For systems of nonlinear equations, the Newton-Raphson method extends naturally by using the Jacobian matrix:
Where:
\(\mathbf{x}_k\) is the vector of variables at iteration \(k\)
\(\mathbf{f}(\mathbf{x}_k)\) is the vector of function values (residuals)
\(J(\mathbf{x}_k)\) is the Jacobian matrix of partial derivatives
As discussed in the previous lesson, we do not explicitly calculate the inverse. Instead, we solve the linear system:
And then update: \(\mathbf{x}_{k+1} = \mathbf{x}_k + \Delta \mathbf{x}_k\)
Two-Equation Example#
Consider this problem from scipy.optimize.fsolve documentation:
We can define the residual function and the analytical Jacobian matrix (more on this later) as follows.
def residual(x):
return np.array([x[0] * np.cos(x[1]) - 4, x[0] * x[1] - x[1] - 5])
def J(x):
return np.array([[np.cos(x[1]), -x[0] * np.sin(x[1])], [x[1], x[0] - 1]])
Next, we write the Newton method as a function, using an existing linear matrix solver from NumPy.
from numpy.linalg import solve
def newton_raphson(F, J, x0, tol=1e-6, max_iter=20):
"""
Solve a system of nonlinear equations using Newton-Raphson method.
Parameters
----------
F - Function that returns the residuals
J - Function that returns the Jacobian matrix
x0 - Initial guess
tol - Convergence tolerance
max_iter - Maximum number of iterations
Returns
-------
x - Solution vector
iterations - Number of iterations performed
"""
x = x0.copy()
for iter in range(max_iter):
f = F(x)
# Early termination if tolerance met
if np.linalg.norm(f) < tol:
return x, iter
jacobian = J(x)
try:
dx = solve(jacobian, -f)
except np.linalg.LinAlgError:
print("Jacobian matrix is singular.")
return x, iter
x = x + dx
print(f"Iteration {iter+1}: ||f(x)|| = {np.linalg.norm(f):.8f}")
print("Maximum iterations reached without convergence.")
return x, max_iter
# Initial guess
x0 = np.array([1.0, 1.0])
# Solve the system
solution, iterations = newton_raphson(residual, J, x0)
print(f"\nSolution: x = {solution[0]:.6f}, y = {solution[1]:.6f}")
print(f"Check: f1 = {residual(solution)[0]:.8f}, f2 = {residual(solution)[1]:.8f}")
Iteration 1: ||f(x)|| = 6.08025560
Iteration 2: ||f(x)|| = 4.91726997
Iteration 3: ||f(x)|| = 2.10781410
Iteration 4: ||f(x)|| = 0.38973132
Iteration 5: ||f(x)|| = 0.00769602
Iteration 6: ||f(x)|| = 0.00000361
Solution: x = 6.504097, y = 0.908414
Check: f1 = -0.00000000, f2 = 0.00000000
Convergence Properties#
The Newton-Raphson method has several important convergence characteristics:
Quadratic Convergence: Near a solution, the error approximately squares with each iteration. This means the number of correct digits roughly doubles each step. It makes Newton method faster than first-order methods like bisection or fixed-point iteration.
Initial Guess Sensitivity: The method can be sensitive to the starting point:
With a good initial guess, convergence is rapid
With a poor initial guess, the method might converge slowly or even diverge
Near points where the derivative is zero, the method can behave erratically
Convergence Criteria: In practice, we typically check both:
The residual norm: \(||\mathbf{f}(\mathbf{x}_k)|| < \epsilon_f\)
The step size: \(||\Delta \mathbf{x}_k|| < \epsilon_x\)
Numerical Solution using SciPy#
Basic Usage#
In practice, we can use off-the-shelf solvers in Python for simple problems.
fsolve is a function in scipy.optimize for root-finding. We can check the
docstring by typing ?fsolve in a Jupyter cell or visiting the documentation.
from scipy.optimize import fsolve
x0 = np.array([1, 1])
sol = fsolve(residual, x0)
print(sol)
np.isclose(residual(sol), [0.0, 0.0])
[6.50409711 0.90841421]
array([ True, True])
Jacobian Matrix#
We have seen the two-equation example in the previous method. We will discuss more on the Jacobian matrix next.
SciPy’s fsolve uses the Powell’s hybrid
method, which combines
Newton-Raphson steps for fast convergence when near the solution
Gradient descent characteristics for improved stability when far from the solution
This hybrid approach retains the rapid convergence of Newton-Raphson while improving reliability for a wider range of initial guesses. This method requires the Jacobian matrix.
Calculating the Jacobian matrix is computationally expensive. By default,
fsolve uses the hybrd method in MINPACK, which calculates the numerical Jacobian
matrix using divided difference. For each column of the Jacobian matrix, two
evaluations of the residual functions are needed, resulting in a total of 2N
residual evaluations for an N-dimensional problem.
Providing the Jacobian matrix can speed up the calculation. This is one of the reasons why texts on power system analysis always show Jacobian matrix.
fsolve allows specifying the function that provides the Jacobian matrix
through the fprime argument.
To clarify, the Jacobian function is the first-order derivative of the residual function w.r.t the unknown variables. It is not necessarily the derivative of the original function w.r.t the unknown variables.
In our example, the residual function is:
Since the unknowns are
Therefore, the analytical Jacobian matrix is:
It is called the analytical Jacobian matrix because it is derived based on calculus.
def jacobian_analytical(x):
return np.array([[np.cos(x[1]), -x[0] * np.sin(x[1])], [x[1], x[0] - 1]])
sol = fsolve(residual, x0, fprime=jacobian_analytical)
print(sol)
np.isclose(residual(sol), [0.0, 0.0])
[6.50409711 0.90841421]
array([ True, True])
In this small example, we cannot see the performance gain from providing the Jacobian matrix. However, the impact can be significant in complex problems like power flow calculation.
Numerical Jacobian Calculation#
When we don’t specify the Jacobian matrix, fsolve approximates it using a divided difference approach. Each element of the Jacobian matrix is calculated as:
where:
\(J_{ij}\) is the \((i,j)\) element of the Jacobian matrix
\(f_i\) is the \(i\)-th function in the system
\(x_j\) is the \(j\)-th variable
\(h_j\) is a small step size for variable \(j\)
\(e_j\) is the unit vector in the direction of \(x_j\)
Let’s implement this numerical approximation to see how it works:
def jacobian_numerical(func, x, eps=1e-6):
"""
Calculate the Jacobian matrix using finite differences.
"""
n = len(x)
f0 = func(x)
m = len(f0)
J = np.zeros((m, n))
for j in range(n):
# Create a copy of x with a small perturbation in the j-th element
x_perturbed = x.copy()
x_perturbed[j] += eps
# Calculate the perturbed function values
f1 = func(x_perturbed)
# Compute the j-th column of the Jacobian
J[:, j] = (f1 - f0) / eps
return J
# Example: Calculate the Jacobian for our simple function
x = np.array([1.0, 1.0])
J = jacobian_numerical(residual, x)
print("Numerical Jacobian matrix:")
print(J)
# Compare with the analytical Jacobian at the same point
J_analytical = jacobian_analytical(x)
print("\nAnalytical Jacobian matrix:")
print(J_analytical)
Numerical Jacobian matrix:
[[ 0.54030231 -0.84147125]
[ 1. 0. ]]
Analytical Jacobian matrix:
[[ 0.54030231 -0.84147098]
[ 1. 0. ]]
Trade-offs of Numerical Jacobian#
While calculating the Jacobian numerically is convenient, it has several drawbacks:
Computational Cost: For a system with \(n\) variables, computing the numerical Jacobian requires at least \(n\) additional function evaluations.
Accuracy: The accuracy of the approximation depends on the choice of
eps. Being too small may lead to numerical errors due to the loss of precision in floating-point arithmetic, while being too large may not capture the local derivative when the function is not smooth.Performance Impact: For large systems like power flow equations, providing an analytical Jacobian can significantly improve computational efficiency.
Handling Convergence Challenges#
Convergence#
We talked about “convergence”, but what does it mean? Intuitively, it means that the solution does not change much between iterations. That can be seen from the previous figure.
Typically, convergence is checked on the variable between consecutive
iterations. For a specified xtol, if the solution satisfies \(|x_{k+1} - x_k| <
\text{xtol}\), the solution is deemed converged. This is what is checked by
fsolve.
In addition, the residual should be small enough when converged. The tolerance
is often named ftol. If the residual satisfies \(|f(x_{k+1})| < \text{ftol}\), the solution
is deemed converged.
It is beneficial to check both of them if you are writing a custom solver.
Initial Guess#
Initial guess plays an important role in the solver convergence. An inproper initial guess may result in failure to converge. Such guesses are said to be not in the region of attraction of the solution.
For example, if we use the initial guess [0, 0], the solver will fail to
converge.
sol = fsolve(residual, [0, 0])
/tmp/ipykernel_397941/2019346469.py:1: RuntimeWarning: The iteration is not making good progress, as measured by the
improvement from the last ten iterations.
sol = fsolve(residual, [0, 0])
The warning message indicates that iterations are not converging in the last ten steps.
In other cases, a different initial guess may result in a different solution. Consider the simple equation
Starting from 1.2 and -1.2 will converge to 1 and -1, respectively.
def simple_residual(x):
return np.array([x[0] ** 2 - 1])
sol = fsolve(simple_residual, [1.2])
print("Starting from 1.2, the solution is:", sol)
sol = fsolve(simple_residual, [-1.2])
print("Starting from -1.2, the solution is:", sol)
Starting from 1.2, the solution is: [1.]
Starting from -1.2, the solution is: [-1.]
Storing History using Python decorator#
Let’s get into fsolve to print out the residual at the solution.
First, let’s enable full_output=True to get some extra information, such as the number of
iterations. Options like full_output and the corresponding output format can be looked up in
SciPy documentation.
sol, infodict, ier, mesg = fsolve(residual, [0, 0], full_output=True)
print(f"Number of iterations: {infodict['nfev']}")
Number of iterations: 31

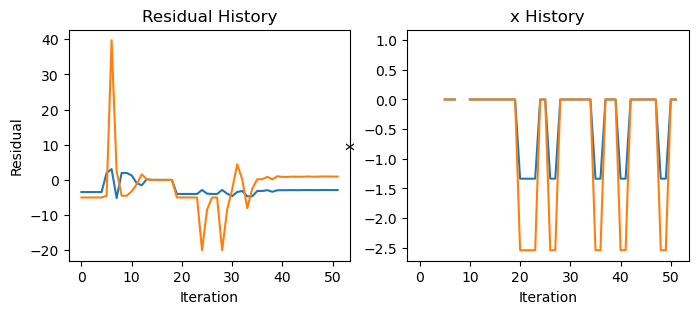

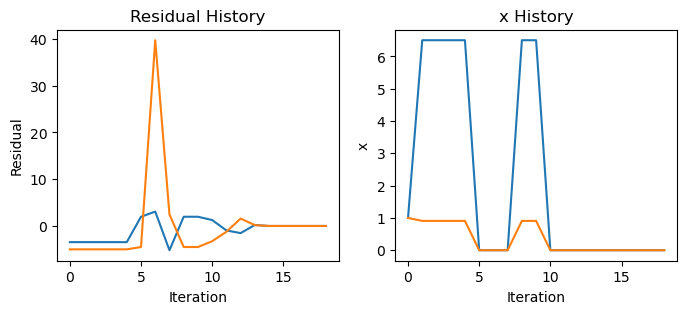

Now let’s store the x and the residual at each step. We will implement it using
a technique called decorator.
Decorators can be used to modify the behavior of a function. They are often used to add extra functionality to a function.
A decorator is a function which takes a function as input and returns a modified function.
residual_history = []
x_history = []
# `with_history` is a decorator to wrap the callback function
def with_history(func): # `func` is the function to modify (wrap)
def wrapper(*args, **kwargs): # `wrapper` is the modified function to be returned
residual_history.append(residual(args[0]))
x_history.append(args[0])
return func(*args, **kwargs)
return wrapper
Below is the basic way to use the decorator – just call the decorator with the
function to be modified. In this way, we did not modify any of the residual
code but added extra functionality. Decorators are most powerful when
you have a long function needing new functionality with only external
modifications.
residual_with_history = with_history(residual)
sol = fsolve(residual_with_history, [0, 0])
/tmp/ipykernel_397941/865456783.py:3: RuntimeWarning: The iteration is not making good progress, as measured by the
improvement from the last ten iterations.
sol = fsolve(residual_with_history, [0, 0])
# plot the residual history and `x` history in two figures, side by side
import matplotlib.pyplot as plt
import seaborn as sns
def plot_history(residual_history, x_history):
plt.figure(figsize=(8, 3))
plt.subplot(1, 2, 1)
plt.plot(residual_history)
plt.xlabel("Iteration")
plt.ylabel("Residual")
plt.title("Residual History")
plt.subplot(1, 2, 2)
plt.plot(x_history)
plt.xlabel("Iteration")
plt.ylabel("x")
plt.title("x History")
plot_history(residual_history, x_history)
You can tell that the residual does not converge to zero, and the x are
jumping back and forth.
Now let’s check the residual and x using initial guess [1, 1].
# don't forget to reset the history
residual_history = []
x_history = []
sol = fsolve(residual_with_history, [1, 1])
plot_history(residual_history, x_history)
More on Decorators
Decorators can be reused to wrap different functions. If we want to define a new
residual function and wants it history stored, and alternative syntax is to
use @with_history before the function definition. This
is a syntax sugar provided by Python.
@with_history
def residual2(x):
return [x[0]**2 + x[1]**2 - 1,
x[0] + x[1] - 1]
sol = fsolve(residual2, [0, 0])
Conclusion#
While numerical Jacobian calculation offers convenience, analytical Jacobians provide better performance for complex systems. Understanding both approaches gives you flexibility:
Use numerical Jacobians for rapid prototyping and simple problems
Implement analytical Jacobians for production code and large-scale systems where performance matters
The choice depends on your specific needs in balancing development time against execution speed.
For our nonlinear equation solving needs, it’s valuable to know that even without providing a Jacobian, we can still find solutions efficiently using tools like fsolve. However, as problems become complex, the analytical Jacobian can be helpful for computational speed up.
